EasySpin's simulators in Python

epreasy is its own package in the same repository and distribution, imported as import epreasy. It depends on spynach (for the oracle reader and comparison tools), never the reverse: a test walks the sources and fails if anything in the Spinach port imports it. The Spinach port stays a pure mirror of Spinach; EasySpin's methods, which do not fit Spinach's create, basis, sequence, context pipeline (field sweeps, resonance-field search, perturbation theory, orientation interpolation, the Wigner-function slow-motion basis, fitting), live here with their own isotope table, units and angle conventions.

The port works from EasySpin's readable source at tag v6.0.15 (MIT licence; the attribution is kept in LICENSE). EasySpin's seven C kernels (line summation, triangle projection, cubic roots, peak binning, the slow-motion Liouvillian) are rewritten in NumPy, with a Numba path for the three that pepper and garlic use, bit-exact with the MEX files. Algorithms, not compiled code, give EasySpin its speed, and the algorithms are ported.

Underneath: EasySpin's spin-system validation, sop and the Stevens operators, ham with the field split that makes field sweeps cheap, levels, resfields with its adaptive spline modelling of the energy level diagram, the eigenfield method, line shapes, the SOPHE grids, rotations, units and EasySpin's isotope table. The function-by-function list is in the package README.

Not ported

The thyme engine of saffron (shaped pulses, explicit propagation, resonators) and spidyan; esfit's window and the other GUIs; chili's C kernel for the Liouvillian (the general method, which the kernel reproduces to 1e-3, is the ported one), Heisenberg exchange and the LMK basis; isotope mixtures, partial ordering and sample rotations; orbital angular momentum, higher-order Zeeman terms, crystal symmetries beyond P1; the MD-trajectory methods and Bruker file readers. The guide Coming from EasySpin keeps the list current, simulator by simulator.

• EasySpin's names, fields and units. Functions keep their names, spin systems are dicts with EasySpin's field names, fields in mT, couplings in MHz, angles in radians, spin and level numbers 1-based.
• MATLAB shapes. A scalar or a flat list is one row, a list of lists one row per spin, a 3n x 3 array a stack of full tensors, exactly EasySpin's size rules.
• Python idioms where MATLAB's calling conventions do not carry over. Options are keyword arguments, outputs are named tuples (Spectrum(x, spec, info), FitResult), nothing plots by itself. Each such deviation is recorded in the comparison guide.
• Separate from Spynach. Spynach uses Spinach's 0-based indices, T and Hz, and its own isotope table; EPReasy converts in one direction only when it reuses Spynach code.

After installing (the fast extra adds Numba for the kernels): energy levels, then a powder spectrum.

import epreasy as es

nitroxide = {"g": [2.0088, 2.0061, 2.0027], "Nucs": "14N", "A": [16, 16, 86]}
print("levels at 340 mT along z (MHz):", es.levels(nitroxide, "z", 340).round(1))

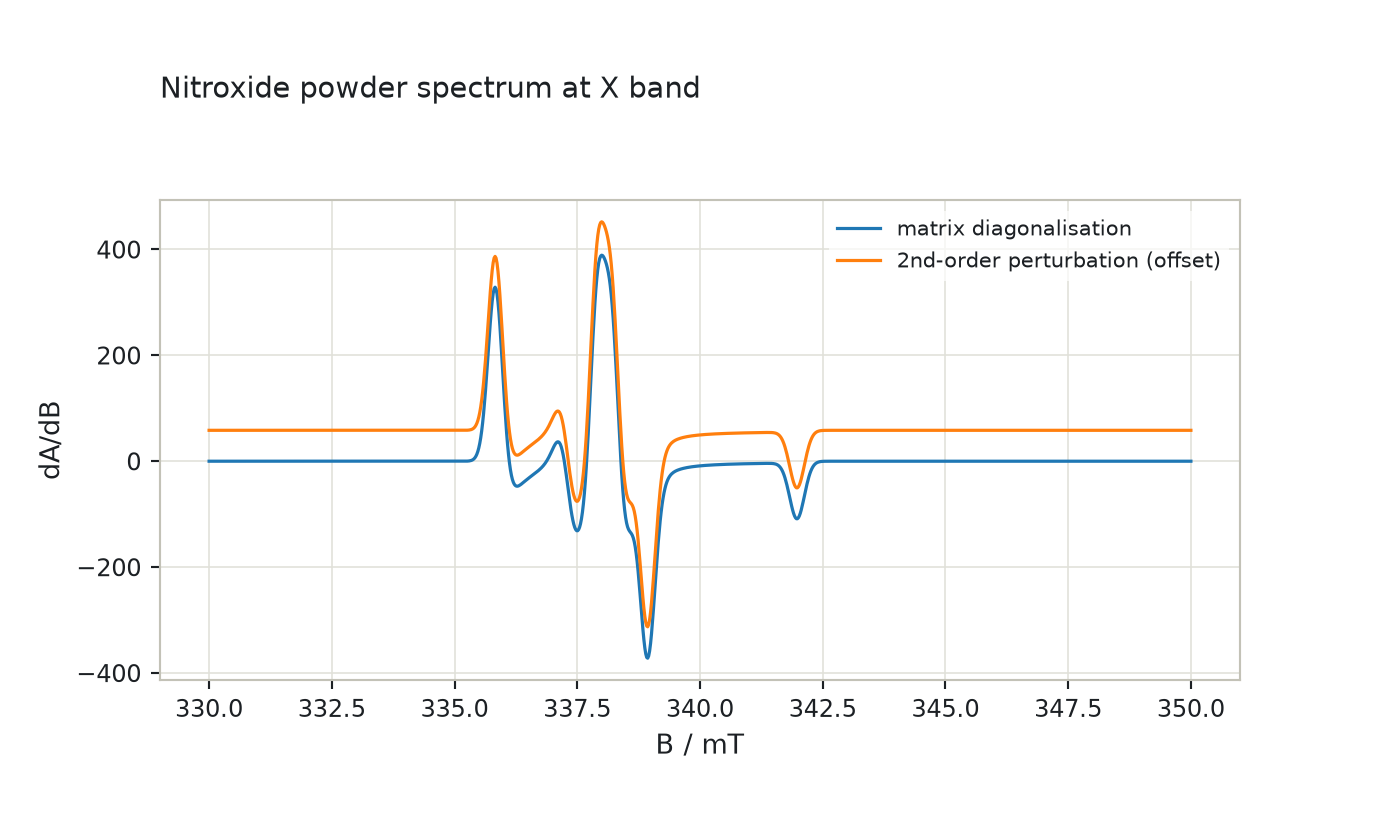

powder = es.pepper({**nitroxide, "lwpp": 0.3}, {"mwFreq": 9.5, "Range": [330, 350]})
print(powder.spec.shape, "points; extrema at", powder.x[[powder.spec.argmax(), powder.spec.argmin()]].round(2), "mT")

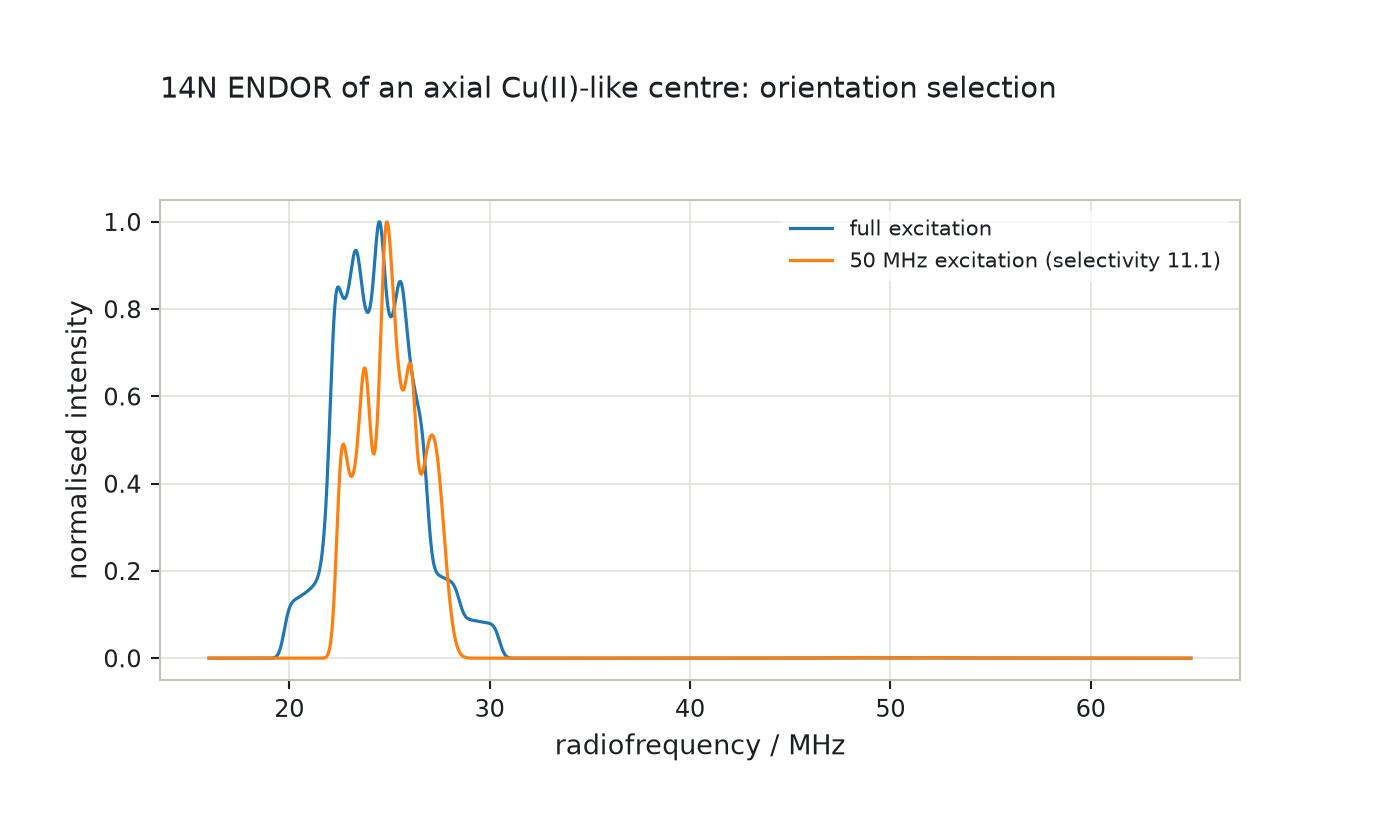

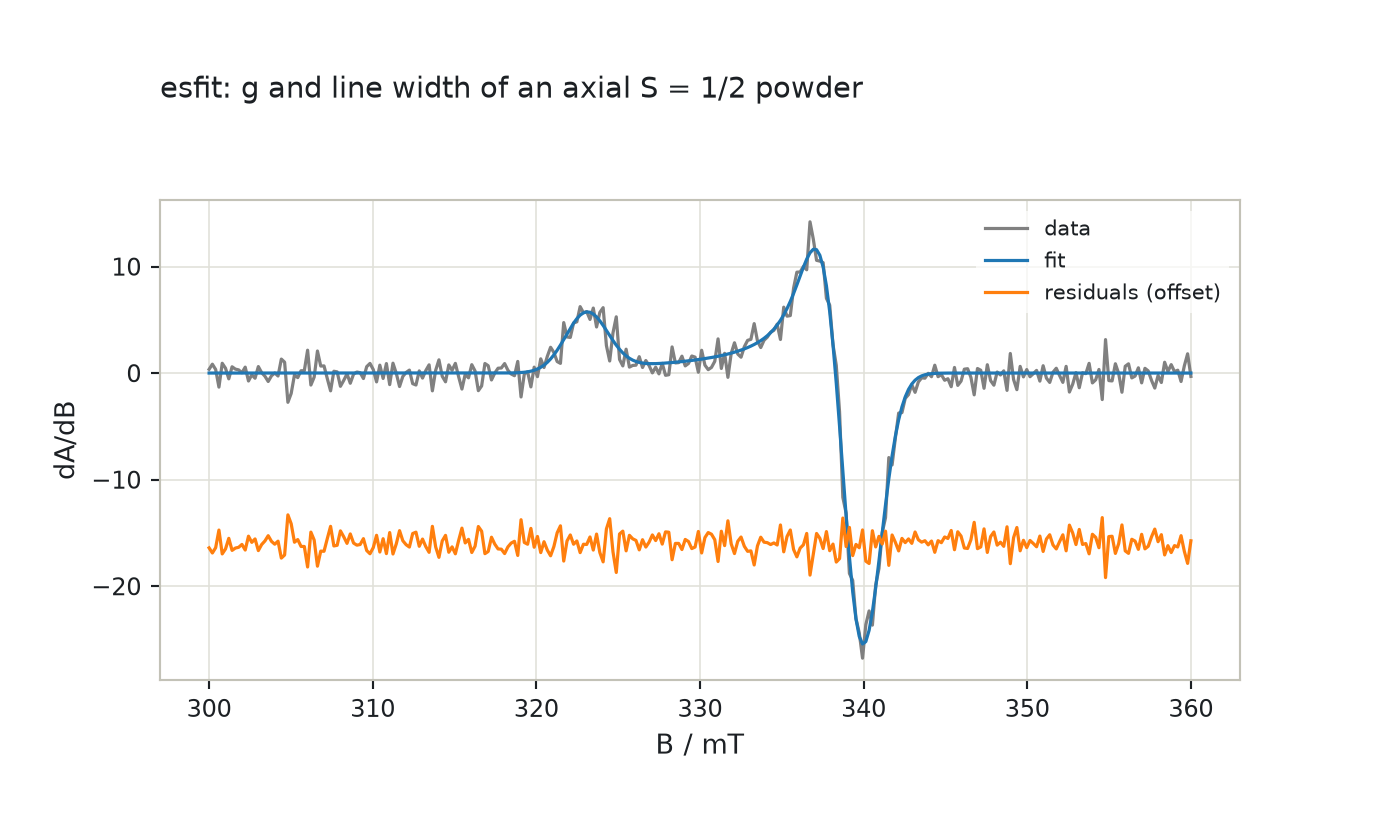

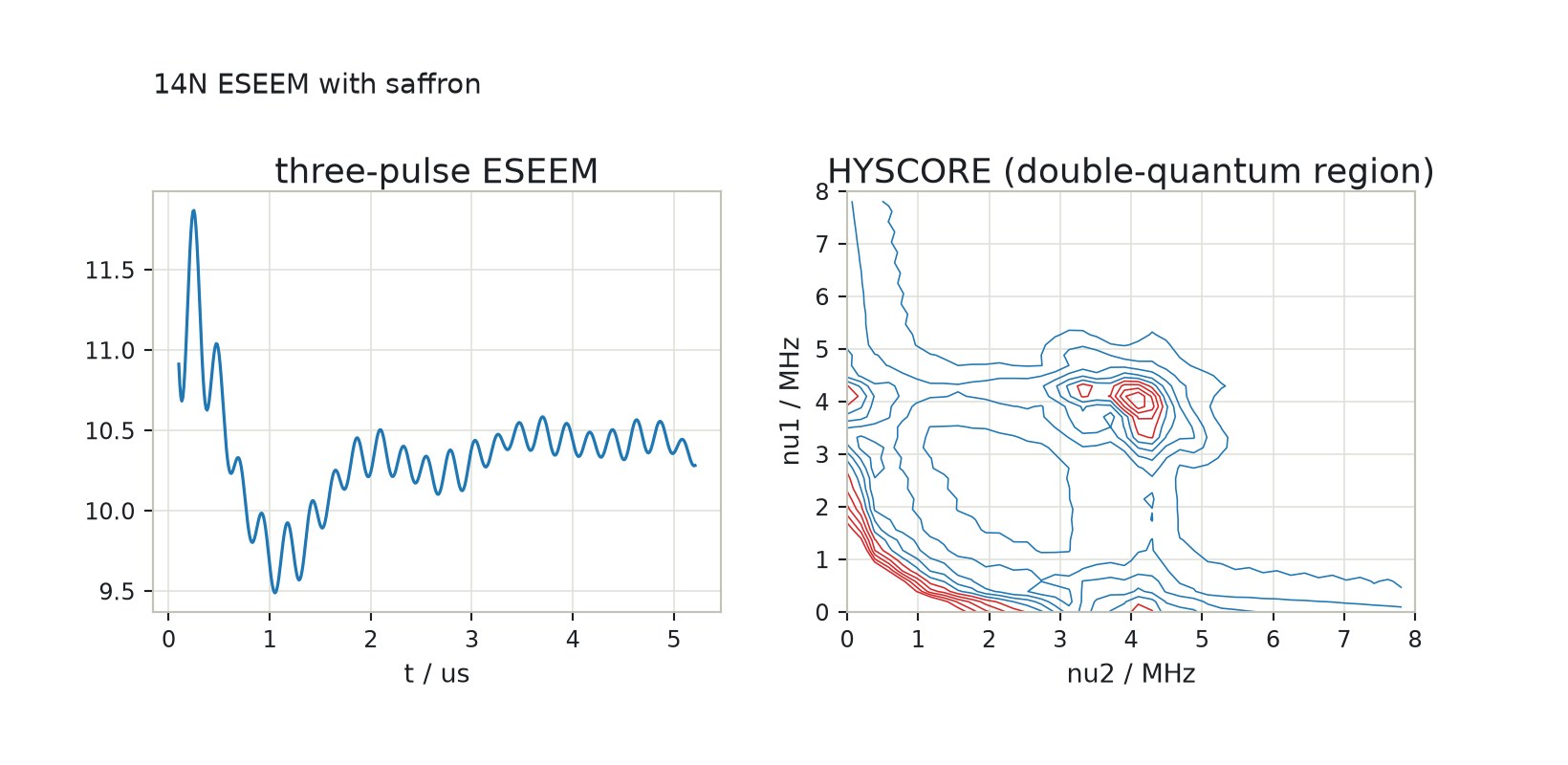

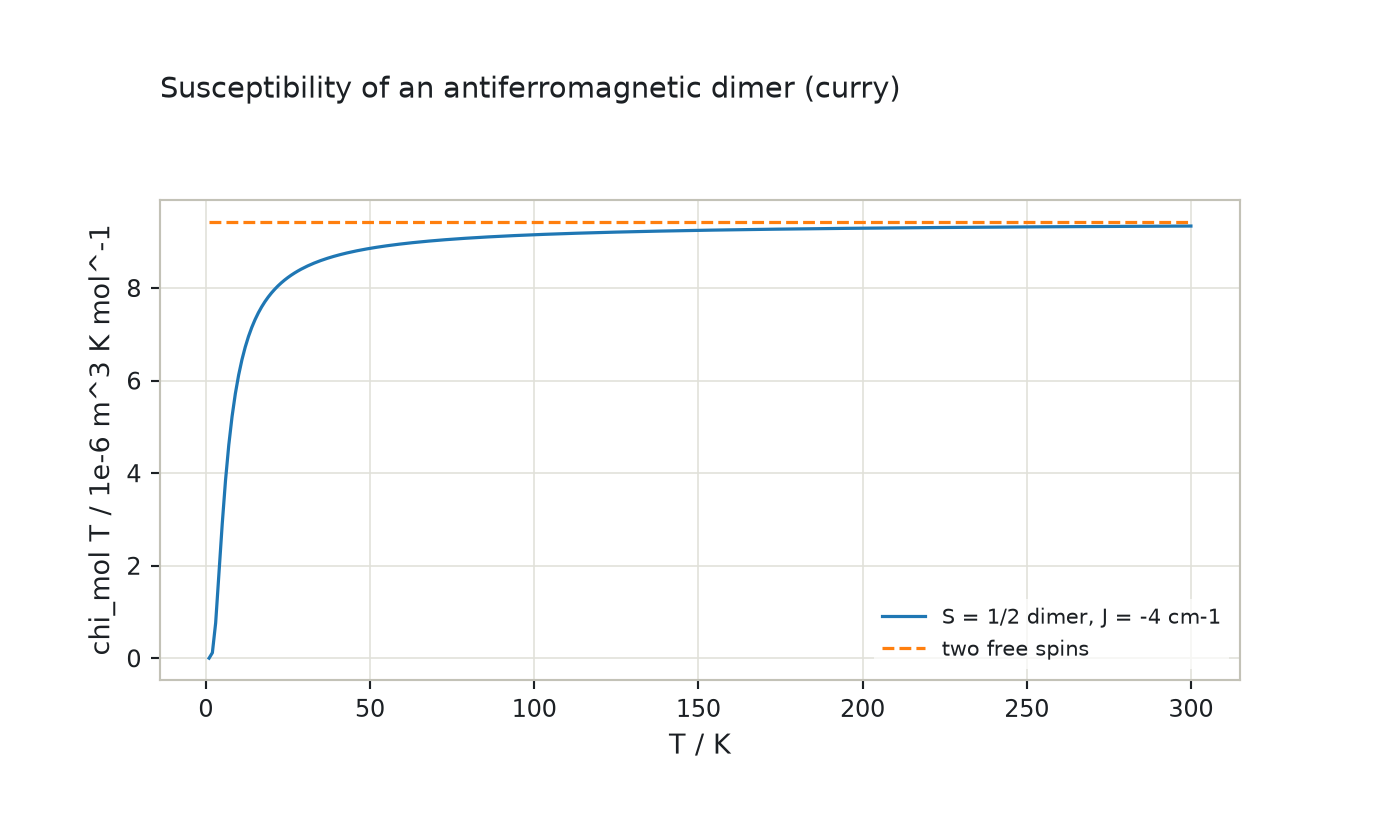

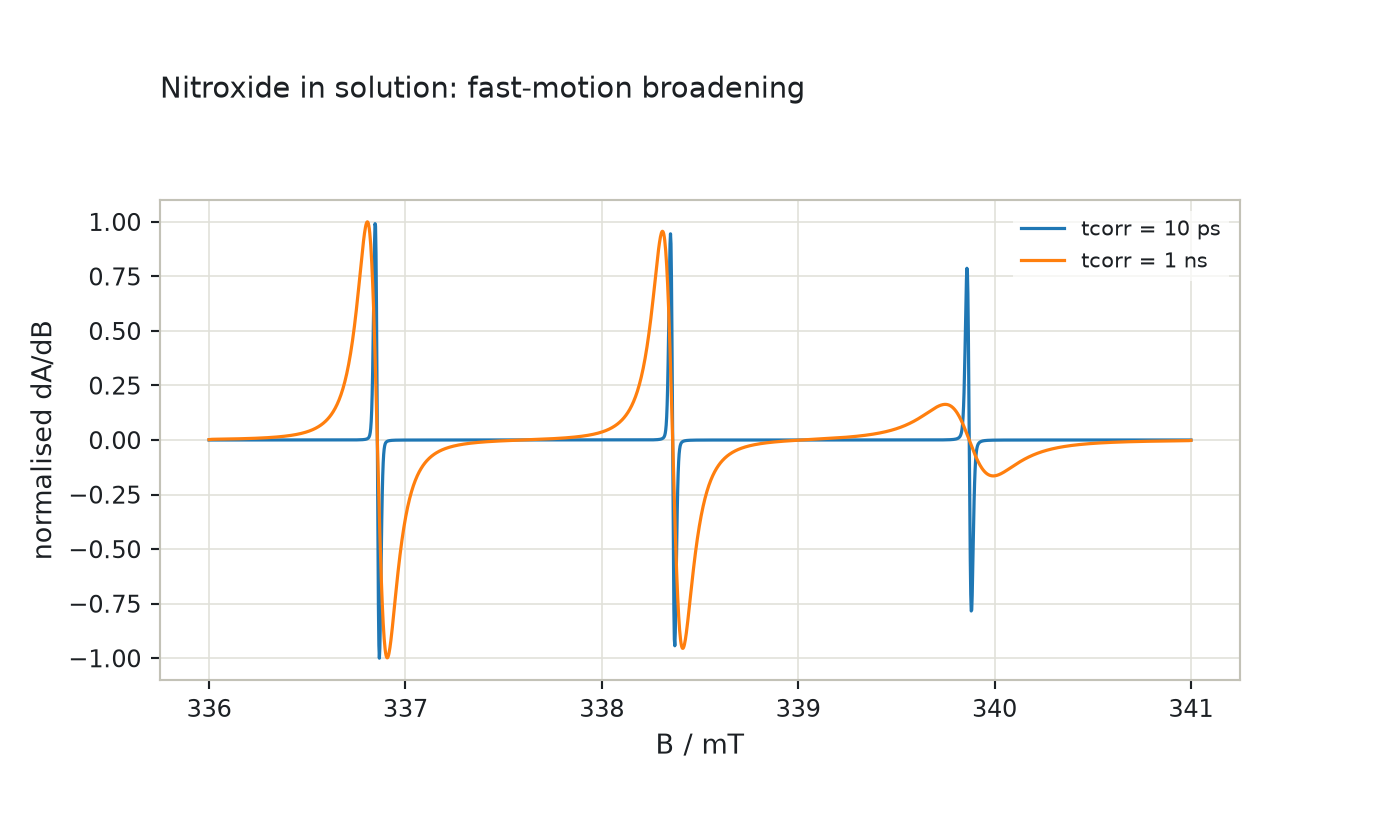

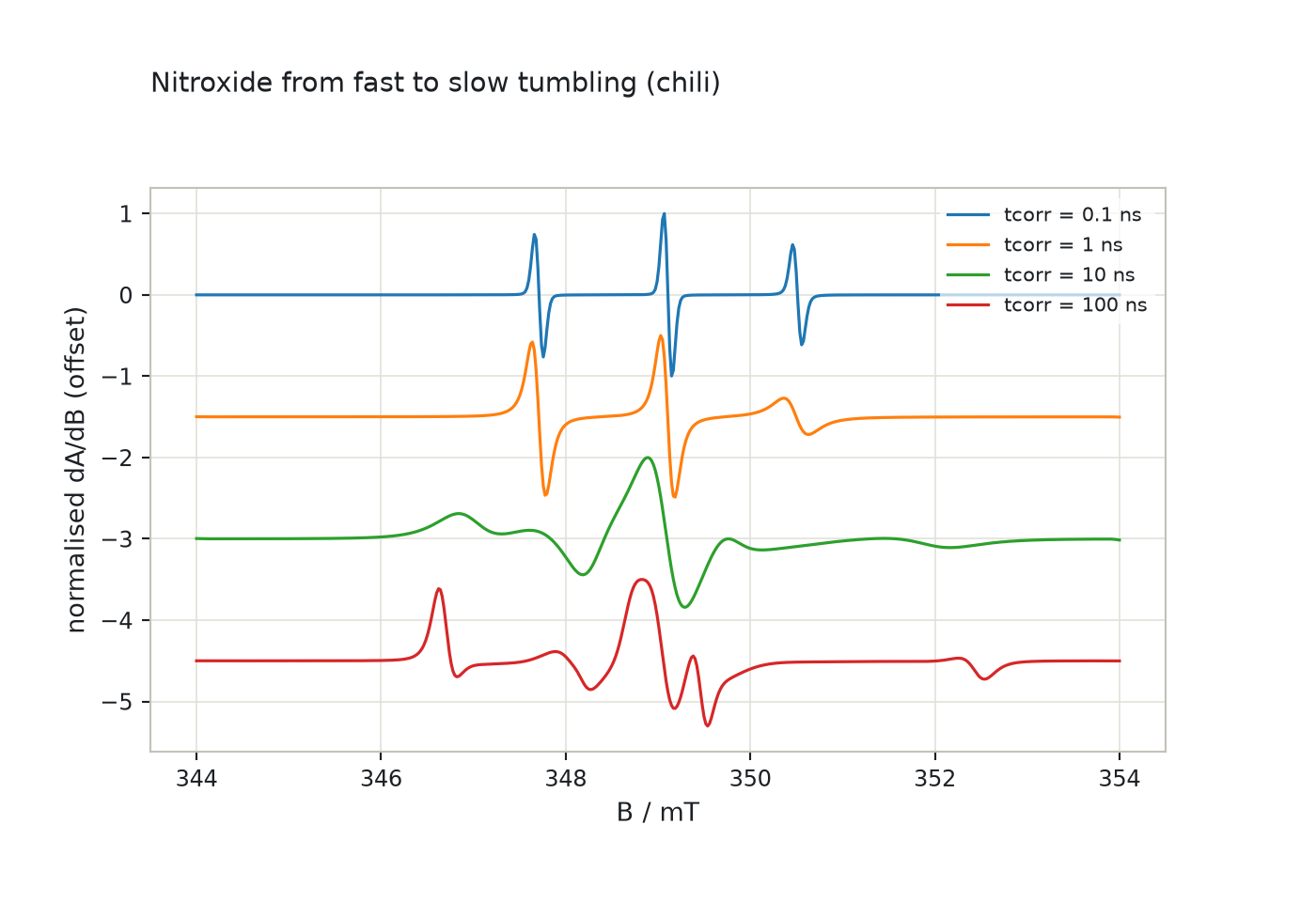

In the browser playground the EPR group of examples runs every simulator with nothing installed: powder spectrum, solution, slow motion, ESEEM, HYSCORE, Mims ENDOR, cw ENDOR, magnetometry, energy levels, Cu(II) with four 14N and a fit.

Reference data are written by EasySpin itself: dump scripts run the installed EasySpin in MATLAB and save each case's inputs and outputs, and the parity tests rebuild every case from the recorded inputs and compare normwise. About 280 cases cover the Hamiltonians, resonance fields and line shapes, 32 pepper and 14 garlic spectra, 33 fits, ENDOR frequencies and spectra, magnetometry, 57 slow-motion spectra and 69 pulse experiments.

• Operators, Hamiltonians, resonance fields, helpers: 1e-9 to 1e-12 of the norm.
• pepper: 1e-5 of the norm, typically 1e-7; the residual is the cancellation error of the closed-form cubic roots in the resonance-field search, which both sides carry. garlic: 1e-8.
• esfit: fitted parameters of analytic models 1e-6, uncertainties 1e-3, fits of pepper spectra 1e-3.
• endorfrq, curry: 1e-9. salt: 1e-6.
• chili: 1e-5 of the norm with EasySpin's general method (the Lanczos convergence threshold sets the floor), 1e-3 against its fast C kernel, which EasySpin's own test demands.
• saffron: 1e-6 on every signal and spectrum.

Every case, with the measured agreement, is listed in porting/EASYSPIN_FIXTURES.md; the harness is described in the package README.

Representative fixture cases, timed on the same machine: EasySpin as shipped (MATLAB with its MEX kernels), EPReasy with the faster of its NumPy and Numba kernels where a kernel is on the path. The table is generated from comparison/easyspin/timings.json by scripts/easyspin-timings.py, which also records the agreement of the two results.

EasySpin 6.0.15 in MATLAB 26.2.0.3386108 (R2026b); EPReasy 0.2.0 with Python 3.12.5, NumPy 2.5.4, SciPy 1.18.1 on accelerate, Numba 0.68.0; macOS-26.6.2-arm64-arm-64bit, 12 cores. EasySpin times are one call inside the fixture run after a warm-up call (a fit is timed once); EPReasy times are the median of 5 calls after a warm-up, the faster of the NumPy and the Numba kernels where a kernel is on the path. Generated 2026-10-24.

The browser column runs the same simulator on a guide-sized example in the playground, where the NumPy kernels are the only path.
